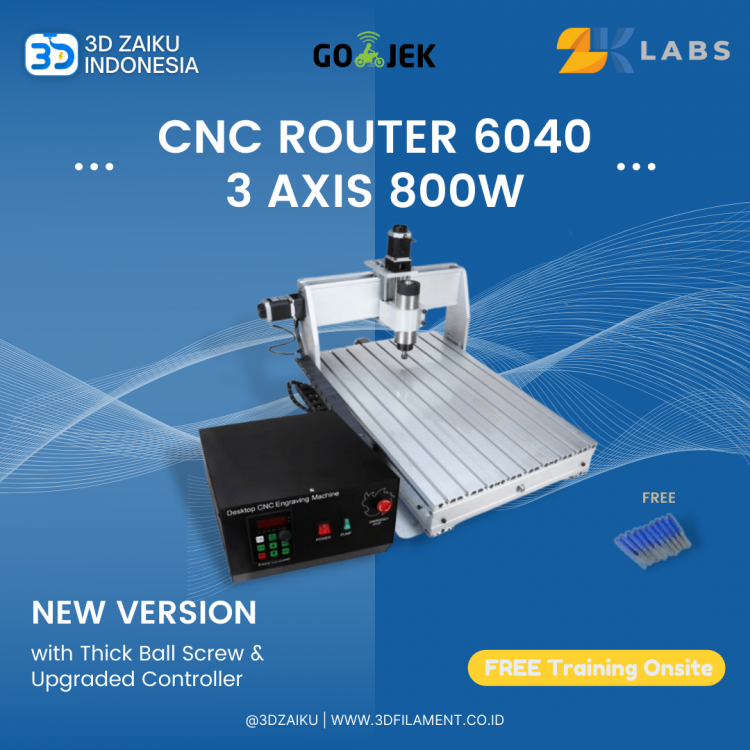

800W CNC 6040 3 axis CNC router CNC wood carving machine USB Mach3 control Woodworking Milling Engraver Machine
SKU : Zaiku 6040-3A
Garansi Full Sparepart 1 Tahun untuk semua merek Zaiku
FREE TRAINING ONSITE area Jakarta, Tangerang, Surabaya
untuk luar kota ada biaya tambahan transport dan akomodasi
Kenapa beli di 3D Zaiku :
1. Garansi FULL sparepart mesin 1 tahun
3. FREE TRAINING ONSITE di lokasi customer
3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko
Mesin bisa motong dan ukir triplek, akrilik, kulit, sampai bahan besi stainless steel
- Set dengan 800 Watt Air Spindle + inverternya
- Include Inverter 800 Watt
- Include Bracket dan sudah terpasang tinggal pakai
- Menggunakan Ball Screw
TECHNICAL SPECIFICATION
Tipe : 6040-3A
X,Y,Z Working Area: 600*400*75mm
Max. Feeding height: 75 mm
Outside dimension: 890mm*680mm*530mm
Table size: 480mm * 760mm
Lathe structure: 6061/6063 Aluminium alloy
Stepping motor: two-phase 57/1.8A
Drive unit: ball screw
Sliding unit:: Chromeplate shaft
Repeat positioning Accuracy: 0.05mm
Spindle motor: 800 Watt Air Spindle
Spindle speed: 24000RPM/MIN
Cutting tool-holder: ER11/3.175mm
Interface:USB port
Sudah terakit jadi, siap pakai
Include Free Software Mach 3 Controller
Bisa dipakai untuk plastic, wood, acrylic, pvc, pcb, wood or the like material.
Package introduced
- 1 Engraving machine 600*400*75 mm
- 1 FREE mesin Spindle
- 1 Set Tensioner
- 3 Axis motors
- 1 Parallel cable
- 1 Tool box and tools

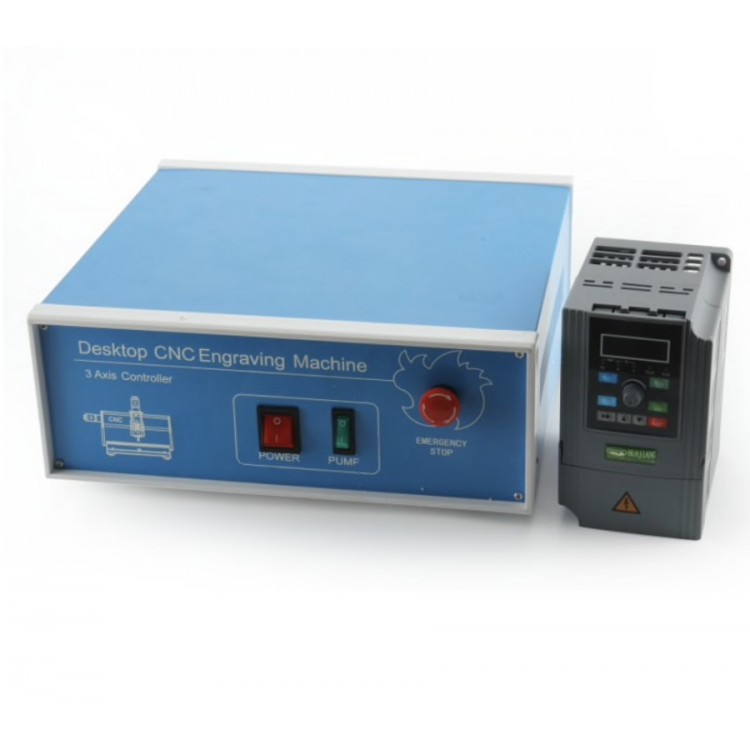

- 1 Control box (110v or 220v)
- 1 Power cable
Garansi Full Sparepart 1 Tahun
Barang READY STOK
